DESCRIPTION;

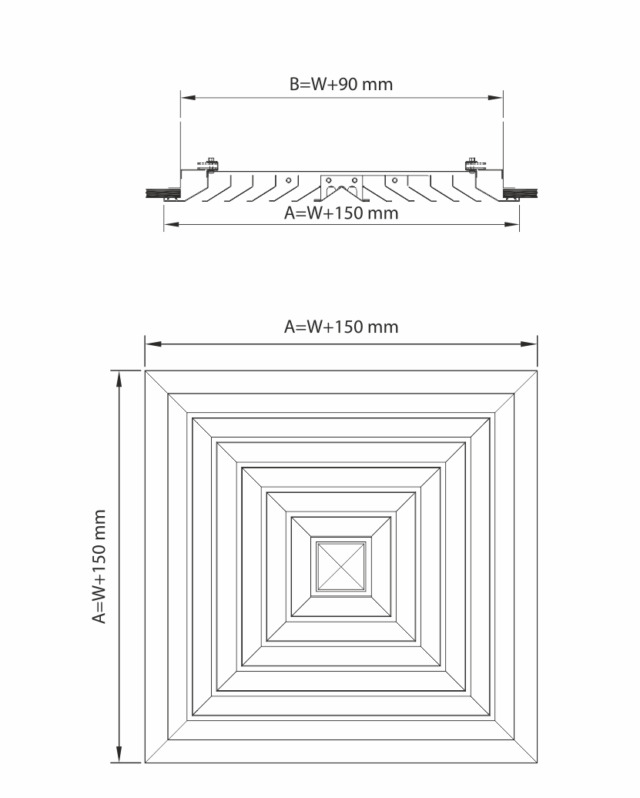

* Flat Blade Square Ceiling Diffuser

HDKTA series square ceiling diffuser application areas are extensive (hospitals, shopping malls, hotels, stores, conference rooms, offices, bank
branches etc.) and is an air-conditioning component that ensures homogenous distribution air and return of polluted air from polluted environments. In addition to the standard 4 way deflection production, as an option they can also be made in 1, 2, or 3 way deflection diffusers. Removable internal blade construction means it’s easily installed and access to the plenum box is facilitated. An optional damper can be attached for regulation. The
casing and the blades of square ceiling diffusers are made from aluminium and only 1st class aluminium profiles are used.


MATERIAL
Product frame is manufactured from extruded aluminium profile and its blades are manufactured by shaping aluminium or DKP sheets in the mould. Square ceiling diffuser, has removable flat blades.

SURFACE COATING
• Electrostatic powder coating (Standard colours are RAL 9010 and RAL 9016)
• As an option all the colours in other RAL codes can be provided.

ASSEMBLY
• Installation with screw (standard)
• Installation with concealed screw
• Installation with plate spring
• Installation with subframe

ACCESSORIES
• PK: Parallel blade damper
• ZK: Opposed blade damper
• PK: Plenum box
• KK: Subframe
