DESCRIPTION

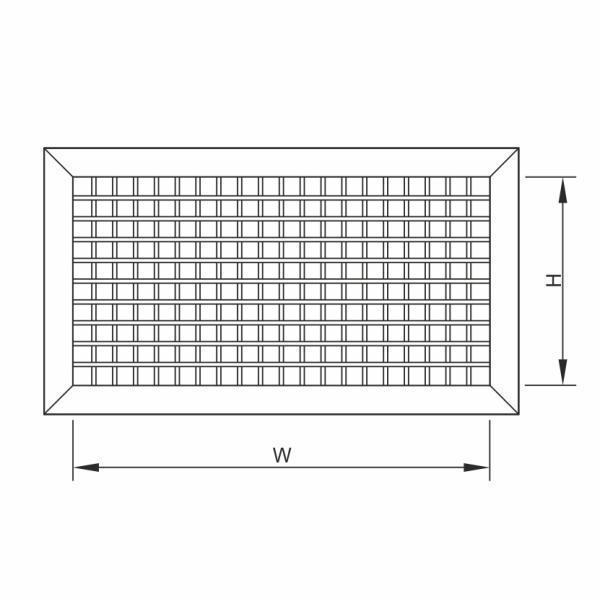

• Egg Crate Grille
• Egg Crate Control Cover

Egg crate grilles are used extraction lines where high extraction pressure is required and that can also be used as recirculation grilles located
on suspended ceiling mounted air conditioning units (VRV internal unit, internal air conditioning units with channels, fan coil devices). Wide
effective area ensures low pressure drop. The honeycombed structure is aesthetically appealing. An optional damper can be attached for regulation. The grilles frame and blades are made from aluminium and only 1st class aluminium profiles are used.

MATERIAL
The product frame is manufactured from extruded aluminium profiles and 12×12 square aluminium grid blades.

SURFACE COATING
• Electrostatic powder coating (Standard colours are RAL 9010 and RAL 9016)
• Aluminium anodised
• As an option, all the colours in other RAL codes can be provided.

FRAME TYPES
• 28 mm frame
• 32 mm frame

ASSEMBLY
• Installation with screw (standard)
• Installation with concealed screw
• Installation with plate spring

ACCESSORIES
• PK: Parallel blade damper
• ZK: Opposed blade damper
• PK: Plenum box
• KK: Subframe
• EU: EU2 filter
